Foundaton Diamond Tool manufactures a wide variety of specialized tooling. Customized design is possible for specialized applications. Please email or ask about options at 626-696-9920

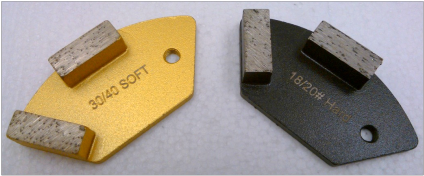

Double bar fast-change trapezoid
Extra soft, soft, medium, hard, or extra hard bond
6/8, 18/20, 30/40, 60/80, or 120/150 grit
Fast-change wedge attachment
Extra large 12mm high-concentration segments for superior life and cutting speed
6/8, 18/20, 30/40, 60/80, or 120/150 grit
Fast-change wedge attachment
Extra large 12mm high-concentration segments for superior life and cutting speed
Double round fast-change trapezoid
Soft, medium, or hard bond
18/20, 30/40, 50/60, 60/80, 80/100 or 120/150 grit
Less tool marks than bar segments makes for better polishing results
Extra large 12mm high-concentration segments for superior life and cutting speed
18/20, 30/40, 50/60, 60/80, 80/100 or 120/150 grit
Less tool marks than bar segments makes for better polishing results
Extra large 12mm high-concentration segments for superior life and cutting speed
Twin PCD fast-change trapezoid
Twin quarter-round PCD segments with 25 grit protection bar
Fast-change wedge attachment
Fast-change wedge attachment
Lavina/edco coating cutter fast-change
Soft or medium bond
18/20 or 30/40 grit
Slices and grinds great on glue, elastomeric coatings, and other flexible coatings
18/20 or 30/40 grit
Slices and grinds great on glue, elastomeric coatings, and other flexible coatings
LAVINA / EDCO v-segment Fast-Change
Extra soft, soft, medium, hard, or extra hard bond
6/8, 18/20, 30/40, 60/80, or 120/150 grit
Fast-change wedge for Lavina or EDCO as well as 3 hole trapezoid attachment
Extra large 12mm high-concentration segments for superior life and cutting speed
6/8, 18/20, 30/40, 60/80, or 120/150 grit
Fast-change wedge for Lavina or EDCO as well as 3 hole trapezoid attachment
Extra large 12mm high-concentration segments for superior life and cutting speed

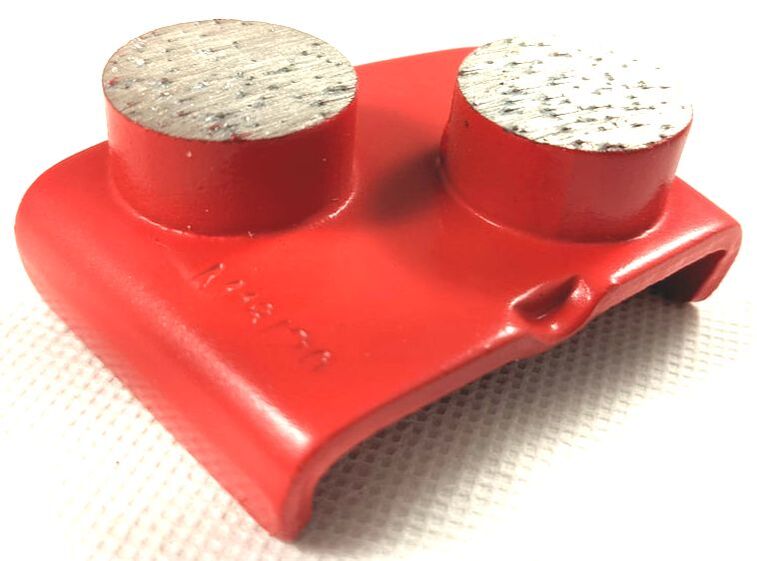

LAVINA / EDCO double-round FAST-CHANGE
Soft, medium, or hard bond
18/20, 30/40, 60/80, or 120/150 grit
Fast-change wedge for Lavina or EDCO as well as 3 hole trapezoid attachment
Extra large 12mm high-concentration segments for superior life and cutting speed
18/20, 30/40, 60/80, or 120/150 grit
Fast-change wedge for Lavina or EDCO as well as 3 hole trapezoid attachment
Extra large 12mm high-concentration segments for superior life and cutting speed
LAVINA / EDCO FAST-CHANGE PCDs
5 Segment design for extreme coating removal and extended life
9mm holes also work with Ironhorse style magnetic attachment
9mm holes also work with Ironhorse style magnetic attachment
2 Segment with wear bar is the standard for most coating removal
2 Segment without wear bar for cutting through thicker coatings

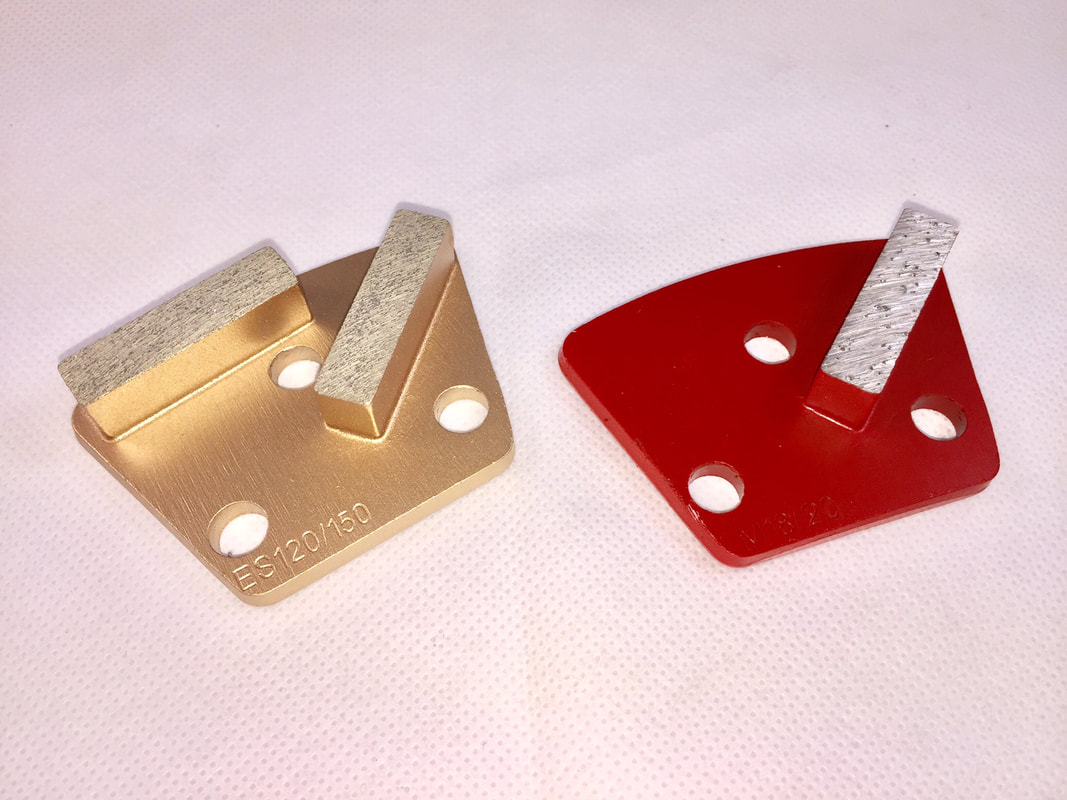

Double bar trapezoid
Extra soft, soft, medium, hard, extra hard, or super hard bond
6/8, 18/20, 30/40, 60/80, or 120/150 grit
3 screw attachment or diamag adaptable
Extra large 12mm high-concentration segments for superior life and cutting speed
6/8, 18/20, 30/40, 60/80, or 120/150 grit
3 screw attachment or diamag adaptable
Extra large 12mm high-concentration segments for superior life and cutting speed
Double round trapezoid
Soft, medium, or hard bond
18/20, 30/40, 60/80, or 120/150 grit
30% more segment mass than twin bar
Larger surface area reduces swirl marks on lower grits
3 screw attachment
18/20, 30/40, 60/80, or 120/150 grit
30% more segment mass than twin bar
Larger surface area reduces swirl marks on lower grits
3 screw attachment
Double arrow trapezoid
Soft and medium bond
18/20 or 35/40 grit
Tall leading edge plow design segment with premium grade diamonds make this an aggressive coating removal and concrete grinding segment
3 screw attachment
18/20 or 35/40 grit
Tall leading edge plow design segment with premium grade diamonds make this an aggressive coating removal and concrete grinding segment
3 screw attachment
Heavy single PCD trapezoid
Extremely aggressive for heavy coating removal
Extra large segment design with 25 grit protection button to control depth
3 screw attachment
Extra large segment design with 25 grit protection button to control depth
3 screw attachment
Twin quarter-round PCD trapezoid
Extremely aggressive but more controlled coating removal
Extra large segment design with 25 grit protection bar to control depth
3 screw attachment
Extra large segment design with 25 grit protection bar to control depth
3 screw attachment
Twin bar embedded PCD trapezoid
Combines PCD cutting power with more control
PCD fragments embedded in hard bond matrix
3 screw attachment
PCD fragments embedded in hard bond matrix
3 screw attachment
Foundaton Diamond Tool manufactures a wide variety of specialized tooling. Customized design is possible for specialized applications. Please email or ask about options at 626-696-9920
IRONHORSE/ MAGNETIC TRAPEZOID
Extra soft, soft, medium, or hard bond
18/20, 30/40, 60/80, or 120/150 grit
9mm holes for Ironhorse and other magnetic plates
Extra large 12mm high-concentration segments for superior life and cutting speed
18/20, 30/40, 60/80, or 120/150 grit
9mm holes for Ironhorse and other magnetic plates
Extra large 12mm high-concentration segments for superior life and cutting speed

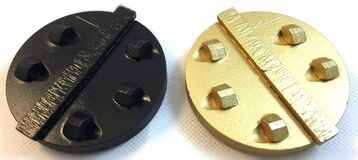

National Equipment Twin Bar Full Segment
Hard or soft bond
18/20 or 30/40 grit
18/20 or 30/40 grit
Twin ellipse (Redi-lock) fast-change
Extra soft, soft, medium, hard or extra hard bond
6/8, 18/20, 30/40, 60/80, or 120/150 grit
For Husqvarna
Extra large 12mm high-concentration segments for superior life and cutting speed
6/8, 18/20, 30/40, 60/80, or 120/150 grit
For Husqvarna
Extra large 12mm high-concentration segments for superior life and cutting speed
twin arrow (redi-lock) fast-change
Soft, medium, or hard bond
18/20 or 30/40 grit
For Husqvarna
Extra large 12mm high-concentration segments for superior life and cutting speed
18/20 or 30/40 grit
For Husqvarna
Extra large 12mm high-concentration segments for superior life and cutting speed

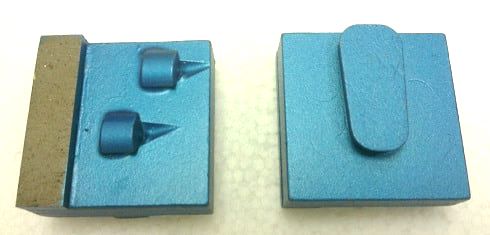

(Redi-lock) PCD SEGMENTS
|
|
|
|
Two 1/4-round segment
Three 1/4-round segment
Two 1/4-round segment with depth control bar
Two 1/2-round segment with two embedded pcd arrow segment depth control cutting segments
Three 1/4-round segment
Two 1/4-round segment with depth control bar
Two 1/2-round segment with two embedded pcd arrow segment depth control cutting segments
Werkmaster segments
Medium bond
30 or 80 grit
30 or 80 grit

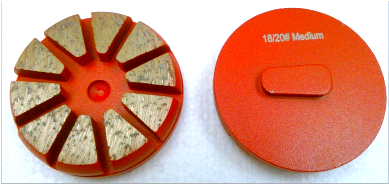

Beveled 10 Segment grinding puck (Redi-lock/STI) fast change
3" diameter-soft, medium, or hard bond
18/20, 30/40, 60/80 and 120/150 grit
Tapered wedge or fast-change attachment
18/20, 30/40, 60/80 and 120/150 grit
Tapered wedge or fast-change attachment
Beveled 10 segment (STI/Prepmaster) fast-change puck
3.5" diameter - medium bond
18/20, 30/40, 60/80, 120/150 grit
Extra-large 10mm segment height for extended life
Two button fast-change attachment
18/20, 30/40, 60/80, 120/150 grit
Extra-large 10mm segment height for extended life
Two button fast-change attachment
Bear claw PCD cutter
3" diameter
Combination of full-round PCD segments and metal-bond arrow segments for extremely fast coating removal
Available for Terrco (speed-shift), STI, Scanmaskin or bolt-on attachment
Left and right direction for counter-rotating grinders
Combination of full-round PCD segments and metal-bond arrow segments for extremely fast coating removal
Available for Terrco (speed-shift), STI, Scanmaskin or bolt-on attachment
Left and right direction for counter-rotating grinders
Beveled 4 segment TERRCO (speed-shift) fast-change
Extra soft, soft, medium, or hard bond
10/12, 18/20, 30/40, 60/80 or 120/150 grit grit
Aggressive segmented design works well on concrete or terrazzo
Bevels reduce operator/machine stress on lippage and rough floors
10/12, 18/20, 30/40, 60/80 or 120/150 grit grit
Aggressive segmented design works well on concrete or terrazzo
Bevels reduce operator/machine stress on lippage and rough floors

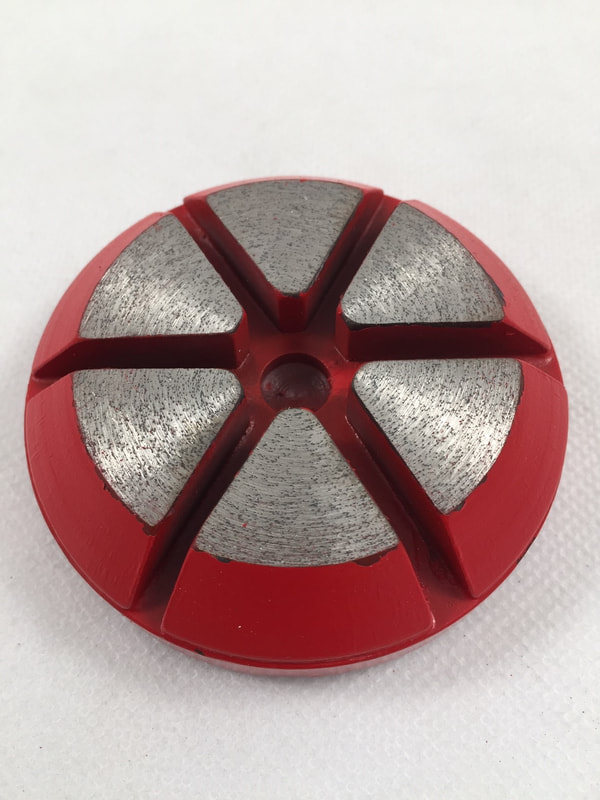

Beveled 6 segment TERRCO (speed-shift) fast change
Medium bond
18/20, 30/40, 60/80 or 120/150 grit grit
Beveled 6 segment design works well on concrete or terrazzo
Extended life and smoother operation over lippage and divider strips
18/20, 30/40, 60/80 or 120/150 grit grit
Beveled 6 segment design works well on concrete or terrazzo
Extended life and smoother operation over lippage and divider strips

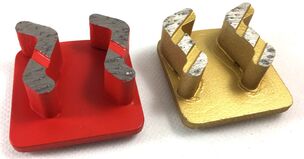

Twin S TERRCO (SPEED-SHIFT) fast-chaNge
Soft, medium, or hard bond
18/20 or 30/40 grit
High speed aggregate exposure and coating removal
18/20 or 30/40 grit
High speed aggregate exposure and coating removal
dragon teeth pcd TERRCO(speed-shift) fast-change
3" puck with five 1/3 round reversed PCD teeth for fast removal of thinset, glue, epoxy, and other coatings
Wear segment to control depth
Left and right direction for counter-rotating grinders
Wear segment to control depth
Left and right direction for counter-rotating grinders
Twin quarter-round PCD TERRCO (speed-shift) fast-change
2.5" puck with twin PCD teeth will chew through the toughest coatings
Wear segment to control depth
Left and right direction for counter-rotating grinders
Wear segment to control depth
Left and right direction for counter-rotating grinders
Double Bar Easy-Change
Extra-soft, soft, medium, hard, and extra-hard bond
6/8, 18/20, 30/40, 60/80, and 120/150 grit
Extra large 12mm high-concentration segments for superior life and cutting speed
6/8, 18/20, 30/40, 60/80, and 120/150 grit
Extra large 12mm high-concentration segments for superior life and cutting speed
double round easy-change
|
Soft, medium, and hard bond
18/20, 30/40, 60/80, and 120/150 grit Extra large 12mm high-concentration segments for superior life and cutting speed |
Easy-Change pcd segment
|
|
Available in single full-round or 5 quarter-round segments
Combination of PCD and 30/40 grinding segment provides awesome coating removal power |
scanmaskin Twin half-round PCD segment
Twin half-round PCD segments for aggressive thick-mil coating removal
scanmaskin Twin half-round PCD with wear segments
Twin half-round PCD segments with wear segments for more controlled coating removal

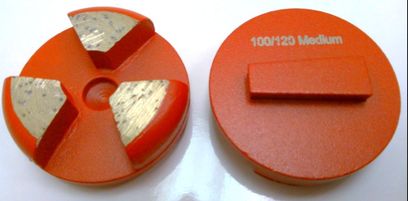

scanmaskin beveled 3 segment
Soft or medium bond
18/20, 30/40, 60/80, and 120/150 grit
Also available in twin ellipse
18/20, 30/40, 60/80, and 120/150 grit
Also available in twin ellipse
SCANMASKIN TWO BAR SEGMENT
Extra-soft, soft, and medium bond
18/20, 30/40, 60/80 grit
Fast, aggressive grinding for hard troweled floors and aggregate exposure
18/20, 30/40, 60/80 grit
Fast, aggressive grinding for hard troweled floors and aggregate exposure
Fast-change adapter plates
|
Converts stock plates to fast-change wedge plates
Allows universal tooling for a variety of machines Available for Lavina, HTC, EDCO, Husqvarna, SASE and more |
Fast-change Velcro backed polishing pad holders
|
|
|
3" Polishing pad holders for fast-change wedge plates, Terrco, HTC, Scanmaskin, Husqvarna, STI
